WeAct BlackPill STM32F411CEU6 STM32F411 STM32F4 STM32 Core Board Learning Board Development Micropython
Disponibilidad : Disponible
Peso aproximado : 0.016 Kg.
¿Preferís comprar en CUOTAS?
Selecciona como queres pagar
Entrega estimada: entre el 31 de diciembre del 2025 y 2 de enero del 2026
Peso aproximado: 0.016Kg.
Este producto tiene
Garantía de
Entrega
Medios de Pago
Tarjeta de
Crédito/Débito
PayPal
Transferencia
Bancaria
Pago con QR
PagoPar
Financiación
Transporte vía
aérea
Recibí este Producto de 10 a 15 días hábiles directamente de USA a
Paraguay
Delivery
Servicio para Asunción e interior del País
Pickup
Elegí tu producto y pasá a retirar de la sucursal que mejor te quede
WeAct Studio Offical Store
A studio dedicated to designing unique electronic modules.Technical support, quality assurance
Version Description

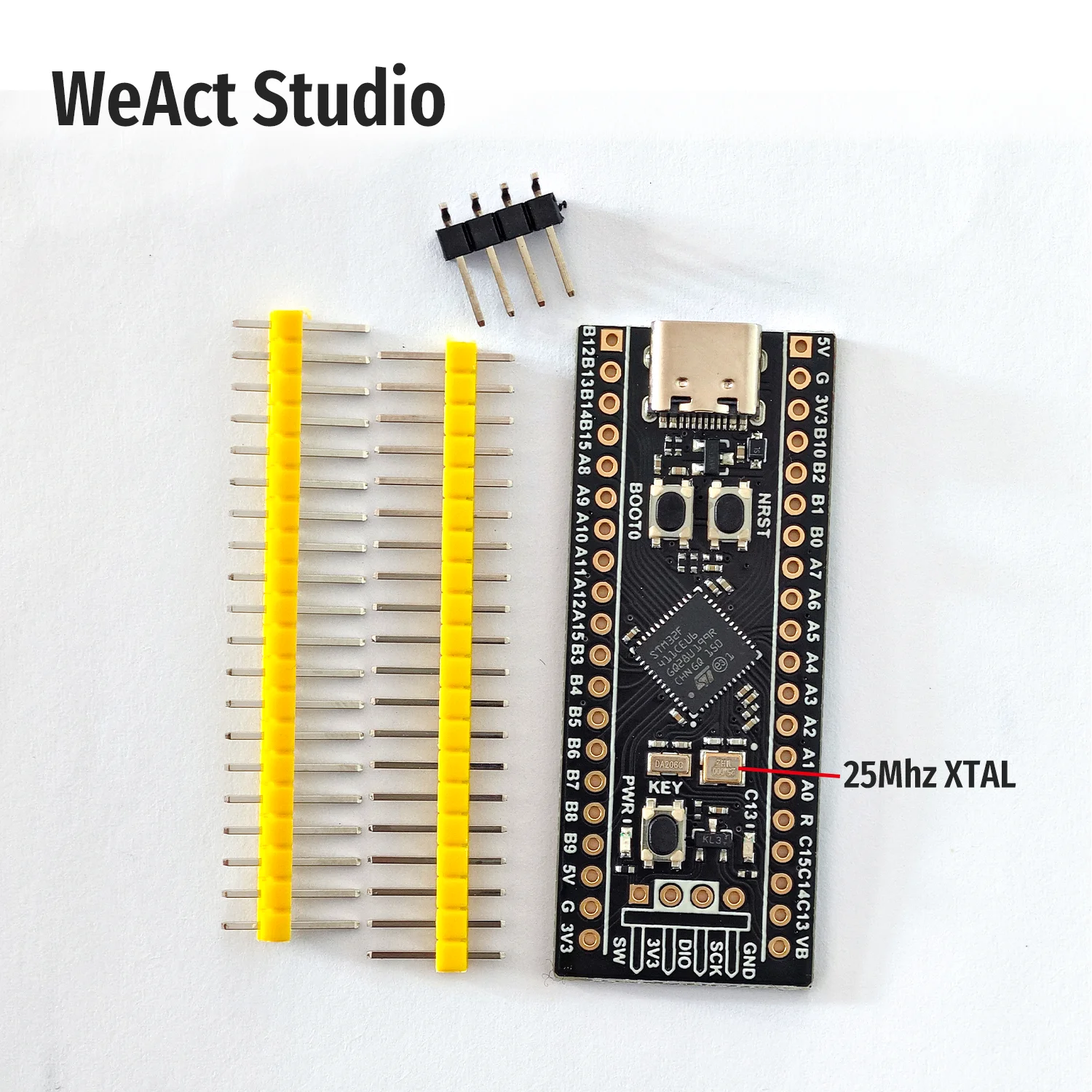

1. F411CE 25M HSE: Regular version, the external crystal is 25M
2. F411CE 25M HSE 8MFlash: Regular version, the external crystal is 25M and the back of the board is welded with w25q64jvssiq 8m flash.

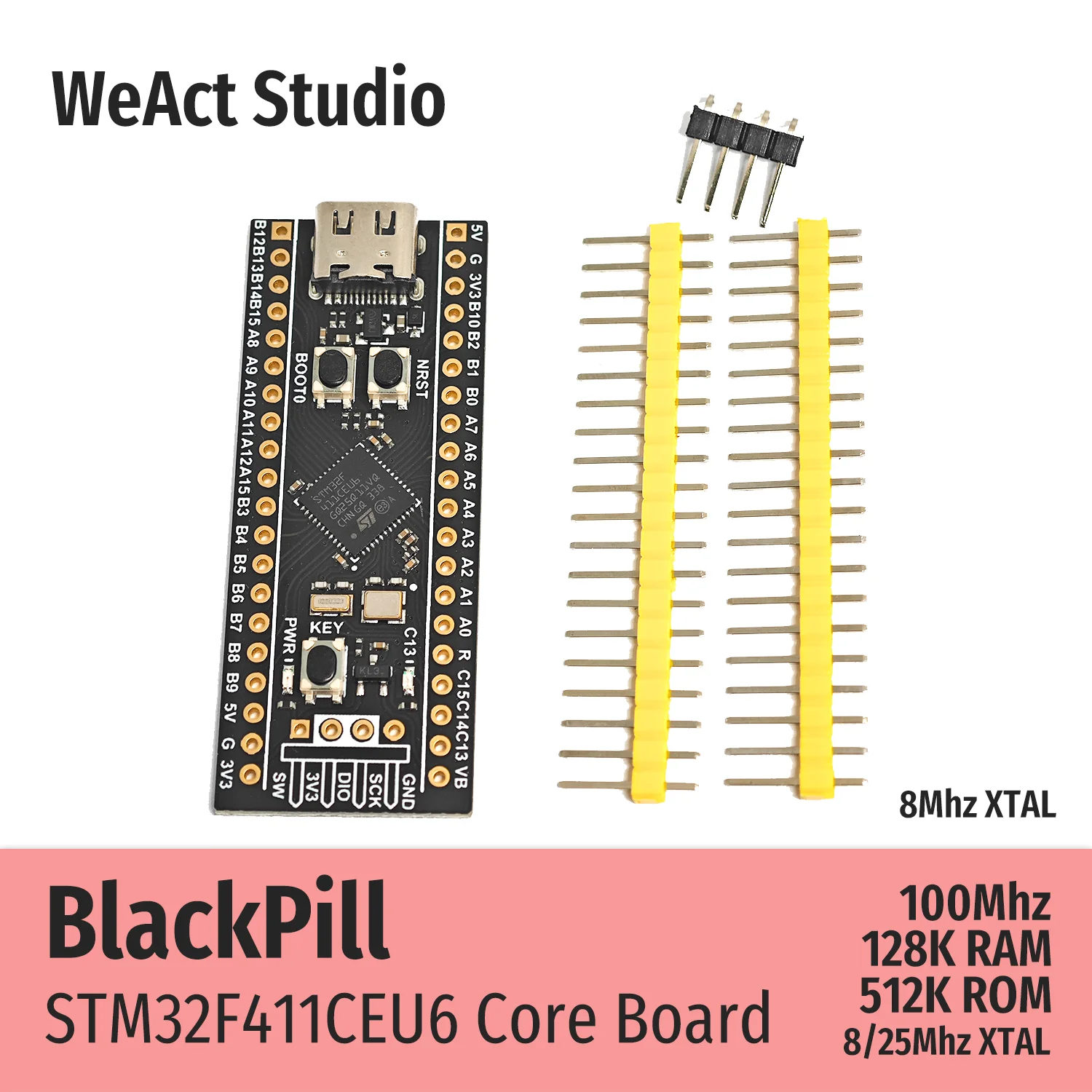

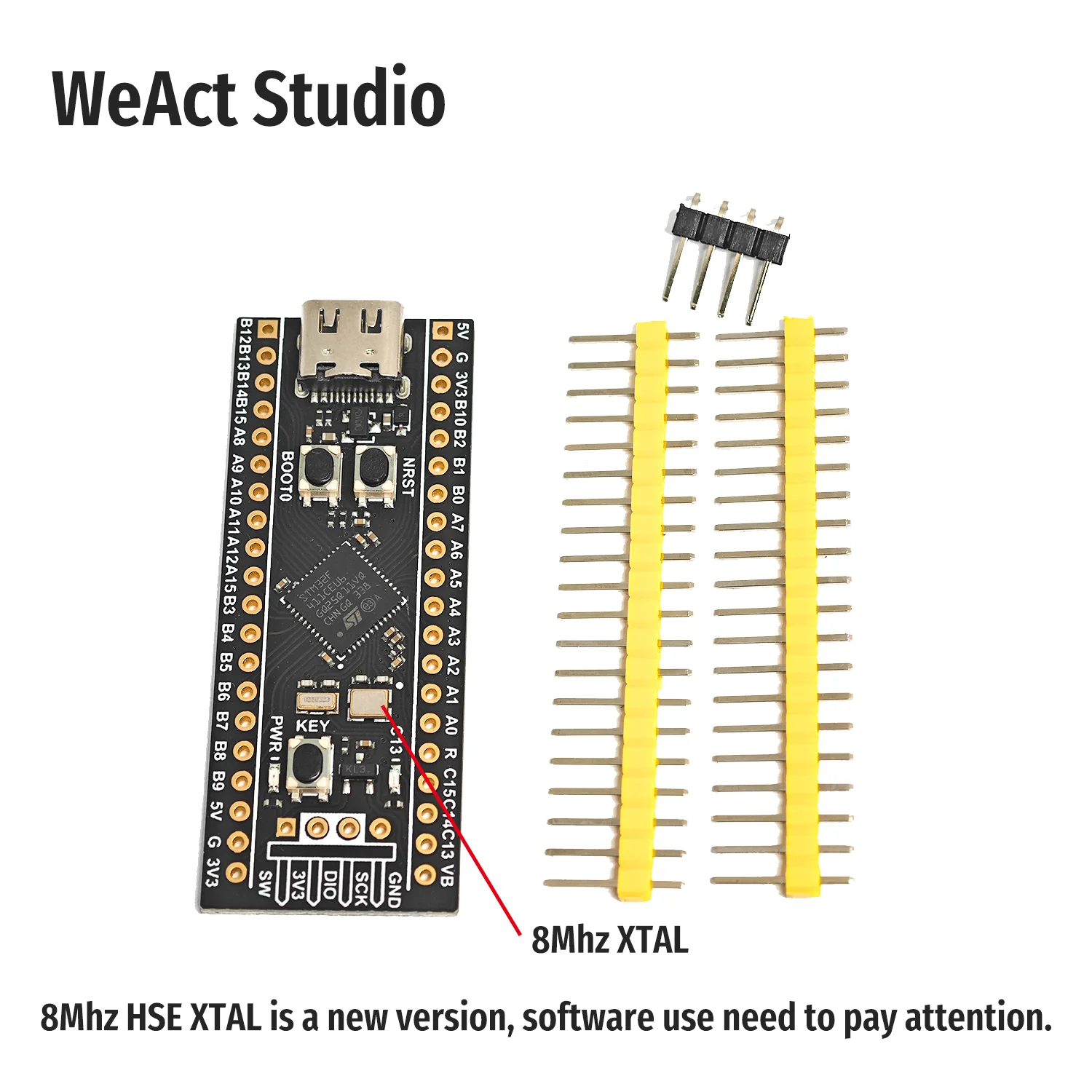

3. F411CE 8M HSE: New version, the external crystal is 8M. Software use need to pay attention.Easier to enter dfu mode by usb.

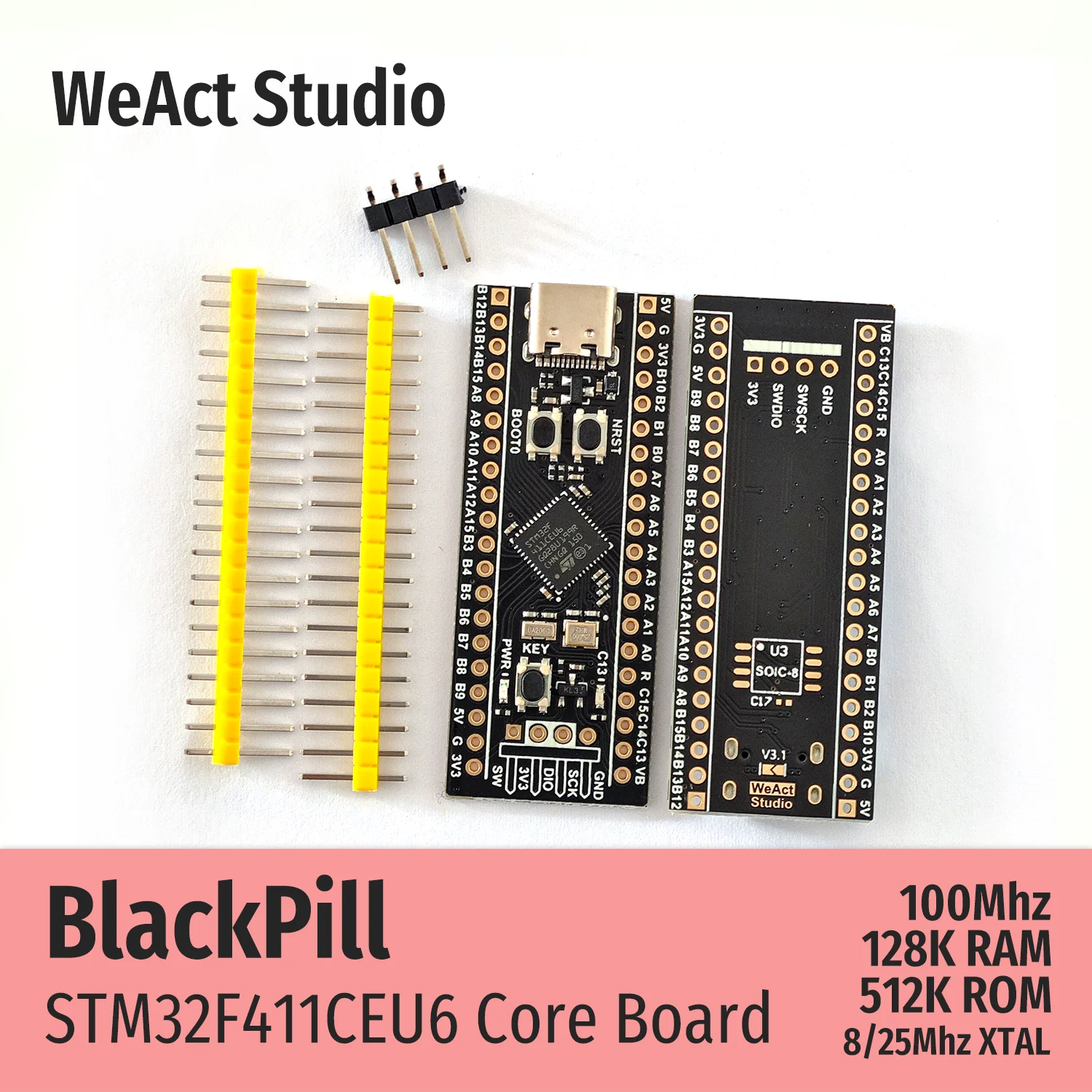

WeAct Studio STM32F411CEU6 BlackPill
The version is V3.1.Board with our LOGO and version number is our board, ST new original chip, quality assurance.At present, most of the businesses selling MiniF4 in Aliexpress are pirated.
WeAct Studio BlackPill Download Link
//github.com/WeActStudio/MiniSTM32F4x1
BlackPill Product Details
1. STM32F411CEU6 100Mhz, 128Kb RAM, 512Kb ROM
2. 25Mhz high speed crystal oscillator &
32.768Khz 6PF low speed crystal oscillator
3. Gold sinking process is adopted, lead-free
process is used, and the needle arrangement
is gold-plated, which is more environmentally
friendly
4. Support C language programming development
5. There are 3 buttons, reset key,
BOOT0 key, user key
6. The use of the latest original chip, high quality crystal vibration
Memory
512Kbytes of Flash memory
128 Kbytes of SRAM
SPI Flash(Optional)
Clock and Power Supply
* 3.3V-5V power input, 3.3V LDO maximum output current 100mA
* USB C interface is used, and a diode is serial to prevent power backflow
* 25Mhz high speed crystal oscillator
* 32.768K 6PF low speed crystal oscillator
Interface and Key
* USART x 3, I2C x 3, SPI x 5,USBFS x 1
* ADC x 1(10),I2S x 5,CRC x 1,TIM x 8
* 20 Pin 2.54mm pitch I/O interface x 2
* 4 Pin 2.54mm pitch SW debug interface x 1
* USB C (Type C) interface x 1
* User keys Key (PA0) x 1
* Reset key NRST x 1
* Boot0 key x 1
Design and Quality
* Adopt lead-free welding process, sink gold
PCB
* Boot is set by pressing a key
* Using high quality crystal oscillator, metal
shell, can be good vibration
* Always use the original chip
* GitHub regularly updates the chipmark used to
make sure that you are buying new chips
Use Items / Download Hex
How to enter ISP (serial port /USB download)
* Method 1:
Press Boot0 and NRST at the same time and
release NRST. After 0.5s, release Boot0 and
enter ISP mode
* Method 2:
In the power off state, press Boot0, power on,
wait for 0.5s, release to enter ISP mode
* Serial port download: use USB to serial port to connect the core board PA9,PA10 can be, do not use USB port power supply
* USB download: use the data cable to connect to the computer
* Weact Studio Download Tool
Dimensions and Accessories
Dimensions: 52.38mm x 20.78mm
Accessories:
* STM32F411CEU6 Core Board x 1
* 20 Pin 2.54mm pitch row Pin x 2
* 4Pin 2.54mm pitch back bend row needle x 1
Provide Altium Designer Core Board Packaging, see DATA
