Product: Industrial Touch Display Computers

We are a Factory store, if you need to purchase in bulk, please contact us

Name：Doris Chan

Email:[email protected]

Whats app: +86 19925492343

______________________________________________________________________

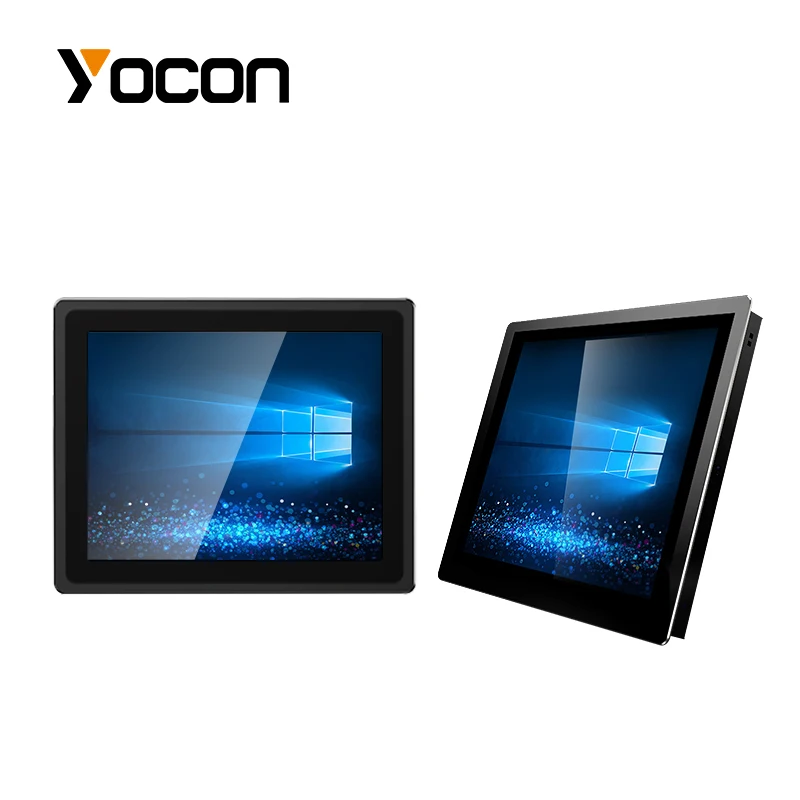

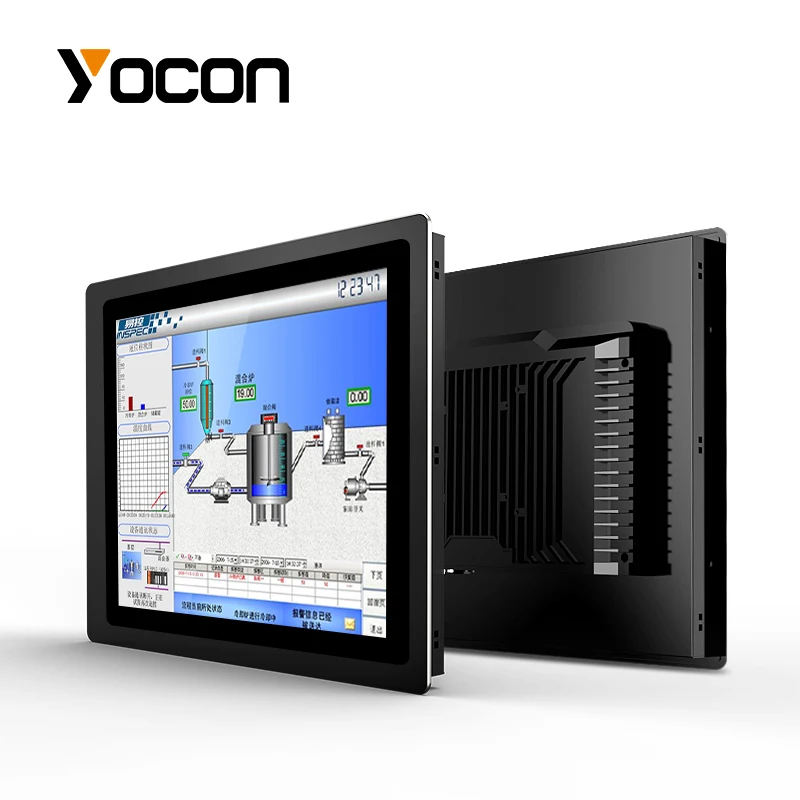

Industrial Touch Screen Computers

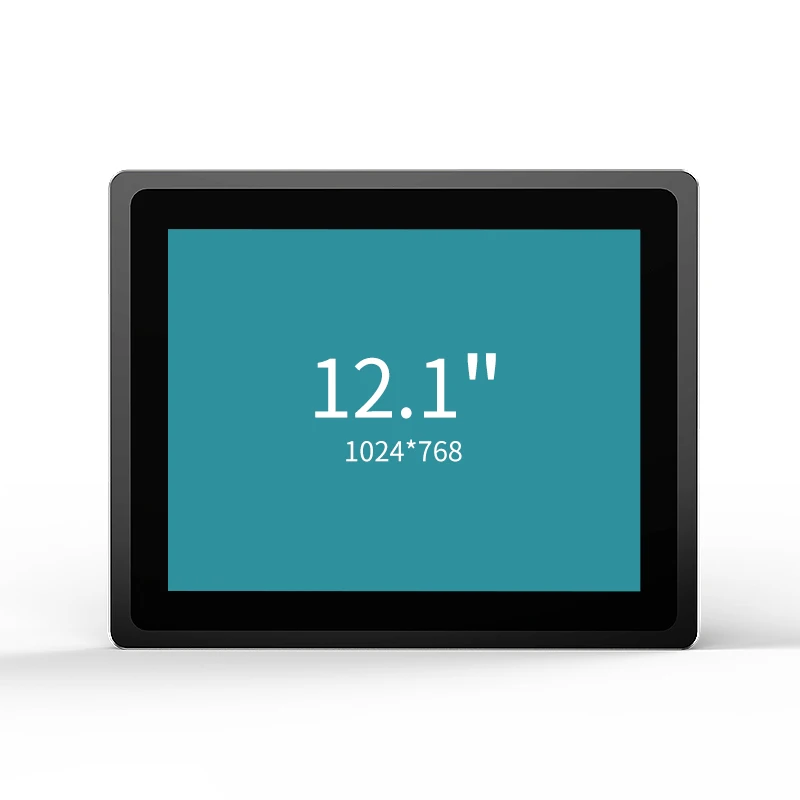

Size: 12.1 Inch

Touch mode: Capacitive Touch

Resolution: 4:3/1024*768

Brightness: 300 CD/M²

Memory: 8G DDR3

Hard Drive: 128G SSD

Touch: Capacitive 10 Point Touch

Operating System: Windows 10 Preview

Interfaces: COM*2, DC*1, HDMI*1, VGA*1 ,USB 3.0*2,USB 2.0*2, LAN*1, Audio I/O, WIFI*2 & Bluetooth

Industrial Computing Parameters

Brand: Yocon/koxian

Material: Aluminum alloy

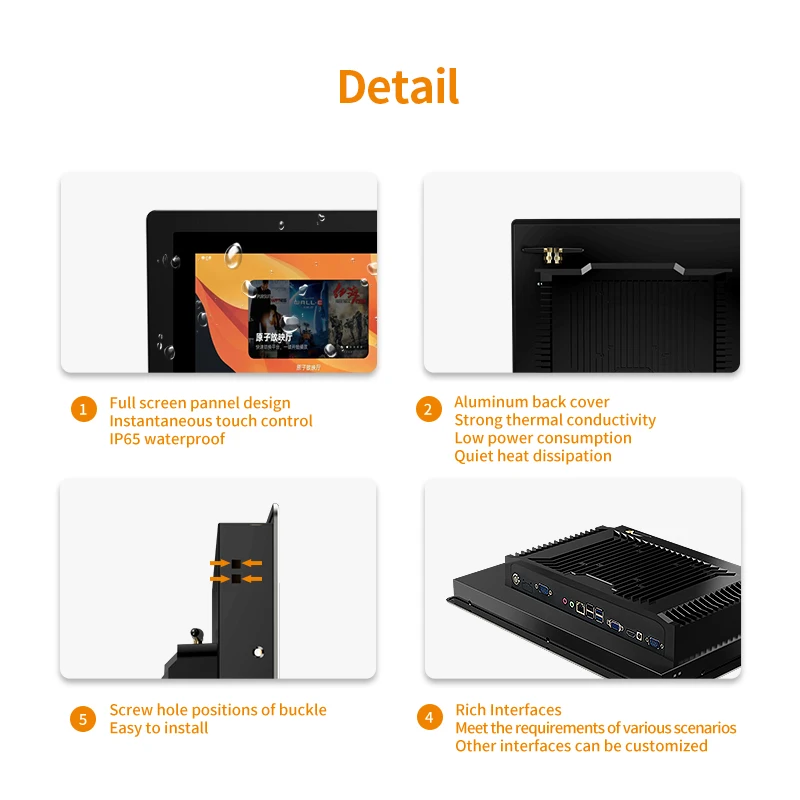

Features: Fully enclosed, dustproof, fanless heat dissipation

Product:Industrial Touch Screen PC

Color: Black

Weight: About 4kg

LCD touch screen parameters:

Brightness: 300cd/m2

Contrast: 1000:1

Viewing angle: 160°/160°,178° full view can be customized

Response time: 5 Ms

Interfaces: COM*2, DC*1, HDMI*1, VGA*1 ,USB 3.0*2,USB 2.0*2, LAN*1, Audio I/O, WIFI*2 & Bluetooth

Power supply: AC 100-240V50/60HZ

Power output: DC 12/5A

Power comsuption: <50W

Touch screen: Capacitor touch times > 50 million

Working temperature: -10℃～50℃

Relative humidity: 20%～95% relative humidity, no condensation

Plug: AU, EU, USA, UK plugs available

Other details

Menu language: English, French, Italian, German, Spanish, Russian, Traditional Chinese, Simplified Chinese, etc.

VISA hole spacing: 75*75mm/100*100mm

Installation method: embedded installation, VSEA, etc...

★★★Special reminder★★★

LOGO/PC required/add touch function/base style/screen size/interface type/power type/installation method (wall-mounted/embedded/open) etc. It can be customized for you. If you have this need, please contact us, we will provide you with timely and thoughtful service!

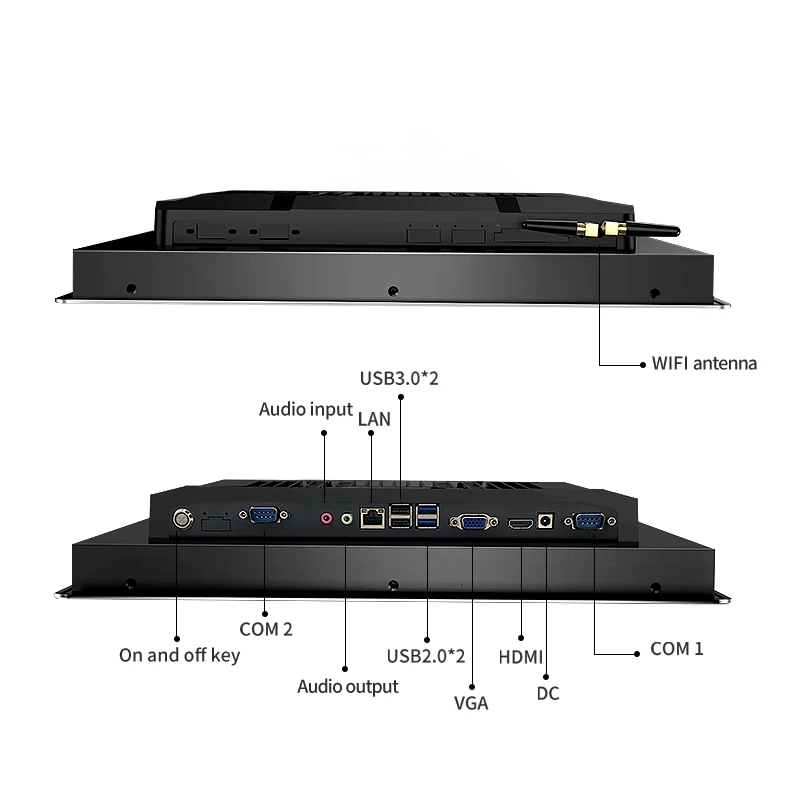

Interface Configuration (customizable)

Interfaces: COM*2, DC*1, HDMI*1, VGA*1 ,USB 3.0*2,USB 2.0*2, LAN*1, Audio I/O, WIFI*2 & BluetoothProduct installation method

Internal installation of the four corners distance is 75mm x 75mm

External installation of the four corners distance is 100mm x 100mm, supports embedded, VESA, and most other installation methods.

For a few special installation locations, please consult customer service. We have technicians who will handle this special requirement during the production process

Delivery time

Sample: 1~5 working days.

10~100 pieces: 2~7 working days.

More than 100 days: 5~15 working days

We are the Factory

All orders will be arranged for production within 2~7 working days after we receive the payment. All products are brand new production.

Customized products require a technician to estimate the production time.The production time for 100 units is expected to be around 15 days.

FQA

Q: Are You Manufacturer ? What Do You Mainly Supply With?

Yes, we are an industrial touch computer factory with more than 14 years history. Our main products are industrial touch computer, industrial touch display, embedded industrial control mainframe and so on.

Q: Can I get some samples?

A: We are honored to provide you with samples for quality inspection, the minimum order quantity is 1 set, welcome to order directly through the link. We also provide free OEM ODM service for your sample order, please feel free to contact our sales. If you have a freight forwarder in China, we can help you ship the goods to your freight forwarder.

Q: What after sales service do you provide.

A: year insurance policy, and lifetime technical warranty

Q: How many days does the sample take to be completed? How about mass production?

A: It usually takes 2-7 working days for samples after payment. The delivery time for mass production depends on the quantity.

Q: How do you guarantee the quality?

A: Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products are strictly QC inspected during production. Especially export products need to complete a 48-hour aging test to ensure that there is no problem before shipment.

Q: Can you provide OEM and ODM special customization services?

A: Of course, including software, packaging, product logo, etc. Please consult customer service for more details.

Q: How long is the warranty period of your products?

A: We provide 1 year warranty for all products and provide lifetime technical maintenance.

Q: Do you have discounts?

A: Yes, we are looking for long-term business cooperation. We will always provide customers with reasonable prices based on the right solutions.

Q: What payment methods does your company accept?

A: Usually it is T/T. For partnership, we may consider other payment terms.
